Why Brick Faces Crumble—and What to Do Before Repairing Them

Brick spalling is easy to mistake for a surface blemish. A face flakes away, someone fills the hollow with mortar or applies a clear sealer, and the wall looks better—temporarily. But the missing face is usually evidence of a condition affecting the masonry, not simply a finish that needs replacing.

The important questions come before the repair: Where is water entering? Can the wall dry? Are the brick and mortar compatible? Is deterioration stable, or are pieces continuing to fall? The answers determine whether the sensible response is observation, a limited patch, selective brick replacement, repointing, or restoration of a larger section.

What brick spalling looks like—and what it does not prove

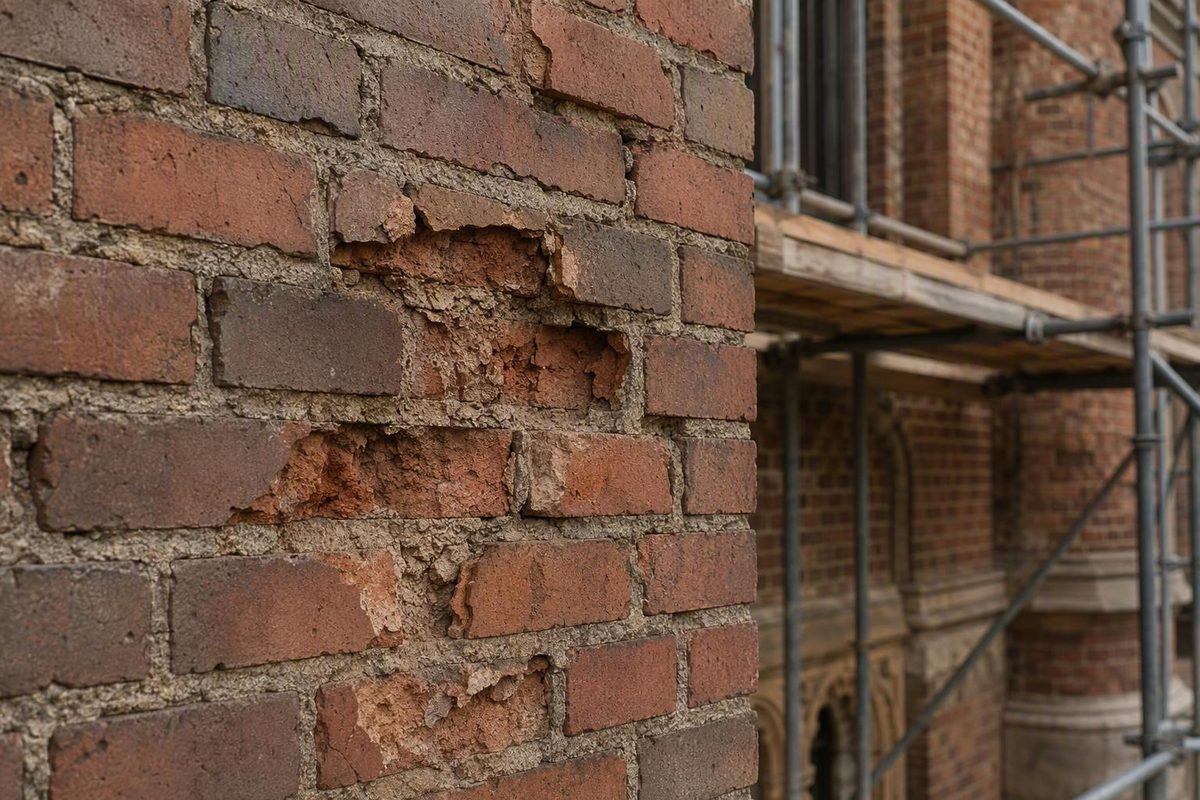

Brick spalling means that part of the exposed brick face has separated or deteriorated. It may appear as thin scaling, peeling layers, chipped edges, pits, powdering, crumbling centers, or large pieces detached from the body of the brick.

Typical clues include:

• A face recessed behind the surrounding mortar
• A hollowed or concave center
• A rough interior where a smoother surface used to be
• Loose flakes on the brick or ledges below it
• Brick-colored powder or fragments at the base of the wall
• Material that crumbles under a very gentle touch
• Fine cracks around the edges of the face
• Mortar standing proud because the adjacent brick has receded

Spalling may progress from subtle surface scaling or edge cracks to deeper pitting and larger areas of face loss. There is no universal timetable. Exposure, saturation, brick properties, climate, wall construction, and previous repairs all affect whether deterioration remains limited or advances.

One useful distinction is between spalling and efflorescence. Efflorescence is a white or pale crystalline deposit created when moisture carries soluble salts to the masonry surface and then evaporates. It indicates moisture and salt movement, but it does not prove that the brick is spalling or about to spall. Brick-manufacturer guidance likewise treats efflorescence as a moisture clue rather than a definite predictor of face loss (Imperial Bricks’ guide to spalling and blown bricks).

Other defects can resemble or accompany spalling:

• Failed mortar joints involve cracking, erosion, gaps, or loss of mortar between otherwise intact units.
• Impact chips are often sharply localized and may correspond to a known strike, fixing, vehicle contact, or construction activity.
• Staining changes surface color without necessarily removing brick material.
• Wall displacement involves bricks moving out of plane, not merely losing their exposed faces.
• Cracking through brick and mortar may indicate movement rather than—or in addition to—surface deterioration.

Several conditions can occur together. A displaced wall can have open joints and spalled bricks; a leaking chimney can show efflorescence, rust staining, failed mortar, and face loss at the same time.

Appearance alone rarely establishes the exact mechanism. Freezing, salt crystallization, impact, abrasive cleaning, incompatible mortar, restrictive coatings, weathering, and material defects can produce overlapping symptoms. Treat visible damage as the beginning of the diagnosis, not the diagnosis itself.

How moisture and repeated freezing can break a brick face

In a cold climate, one common sequence begins when water enters pores, fine cracks, open joints, or defects around the brick. If the masonry becomes sufficiently wet and the absorbed water freezes, expansion within the pore structure stresses the material. Repeated wetting, freezing, and thawing can enlarge internal cracks until the surface layer separates.

This damage usually develops through repeated exposure rather than necessarily appearing after one cold night. The masonry must first become wet enough for freezing to matter, and different bricks respond differently according to their pore structure, saturation behavior, condition, and exposure.

Face loss can then make the cycle more damaging. Fired clay brick may have a slightly denser exterior surface than its interior. Once that exterior is removed, the rougher material behind it can be more vulnerable to wetting and weathering. The International Masonry Institute warns that cleaning or repair methods that damage this exterior “fireskin” can accelerate deterioration, especially in softer brick (International Masonry Institute guidance on brick restoration).

Freeze-thaw cycling is therefore a plausible and common mechanism where wet masonry experiences freezing temperatures. It is not a universal diagnosis. A wall in a mild climate may deteriorate through salts, exposure, impact, defective units, or incompatible repairs. Even in a freezing climate, the underlying question remains why particular bricks became persistently wet while others did not.

Other contributors include:

• Soluble salts: Crystals forming within pores can stress the material as moisture moves and evaporates.
• Damaged mortar joints: Gaps may admit rain, although joint failure may itself result from movement or weathering.
• Hard or incompatible mortar: Dense mortar beside softer brick may redirect moisture and stress into the units.
• Low-permeability coatings: Some paints, sealers, renders, and dense patches can restrict drying.
• Abrasive washing: High-pressure water, blasting, or harsh mechanical cleaning can erode the surface.
• Impact: A localized blow can detach a face or initiate a crack that later admits water.
• Long-term weathering: Repeated exposure can gradually weaken vulnerable material.
• Material defects: Firing, raw-material, or manufacturing variations can affect durability.

Do not confuse ordinary clay-brick spalling with every mechanism described by the same term in concrete. Reinforced concrete may spall when embedded steel corrodes, expands, and breaks the surrounding concrete. That is a distinct mechanism and should not be presented as the normal explanation for face loss in unreinforced clay brick (Alpine Intel’s comparison of brick and concrete spalling).

Trace the water before choosing a repair

Replacing a damaged brick without correcting the moisture pathway can recreate the same conditions around the replacement. Begin the inspection above the damage and work downward.

Start at the roofline and wall top:

• Roof edges and roof-to-wall intersections
• Chimney caps, crowns, shoulders, and flashings
• Parapet coping and coping joints
• Unprotected or cracked wall tops
• Roof drains, scuppers, and overflow routes
• Gutters that leak, overflow, or discharge against masonry
• Downspouts with separated joints or poor discharge locations

Chimneys, parapets, roof drains, and wall tops receive concentrated rain, snow, and runoff. Because they are exposed from above as well as from the side, defects there can keep masonry wetter than the main wall below.

Then examine the wall and its openings:

• Open, cracked, or eroded mortar joints
• Window and door perimeter joints
• Sills that are cracked, flat, back-pitched, or missing effective drips
• Flashing above or below openings
• Lintels, shelf angles, and nearby rust staining
• Repeated runoff paths below sills or roof edges
• Paint, render, cement smears, patches, or sealers

Damage below a window does not prove that the window is leaking. It does, however, justify checking perimeter joints, sill behavior, flashing, and rainwater paths. Rust staining near an opening may point toward persistent wetting or corroding embedded metal, but it does not by itself identify why the brick face failed. Failed flashing, open joints, roofline defects, coatings, and earlier cement repairs are all relevant parts of a cause-first investigation (RestoreWorks’ overview of spalling causes and warning signs).

Finish at the lower wall and ground:

• Splashback from paving or bare soil
• Ground that slopes toward the building
• Downspouts that empty near the foundation
• Irrigation repeatedly wetting the wall
• Dense vegetation that slows drying
• Raised soil, mulch, or paving covering masonry
• Persistent wet soil beside the foundation
• Low-level cracks and deteriorated joints

Spalling near grade warrants investigation of drainage, soil contact, splashback, and irrigation. Location is a clue, not a final diagnosis: low-wall damage can also reflect salts, vulnerable brick, an old coating, or a previous repair.

In a modern cavity wall or brick-veneer assembly, visible weep holes and flashing details may form part of the investigation. A qualified person may need to determine whether concealed drainage is present and functioning. Avoid drilling, opening, or dismantling the wall merely on the strength of a surface diagnosis; the appropriate investigation depends on the assembly.

Document changes over time. Take wide photographs showing the relationship between damage and roofs, openings, downspouts, paving, and grade, followed by close photographs of individual bricks and joints. Note whether debris appears after heavy rain, a freeze, a thaw, or wind. Record recurring interior dampness and the presence of paint, sealer, cement patches, previous repointing, or past brick replacement.

Efflorescence, mold, interior dampness, and rust staining can help map broader moisture movement. None proves the precise mechanism behind face loss. Their value lies in showing that the investigation should extend beyond the visibly damaged brick.

A practical urgency scale for damaged brickwork

No single depth or percentage of face loss decides whether spalling is safe, repairable, or structural. Urgency depends on the depth and spread of deterioration, whether it is active, where it is located, how the wall is built, and what could happen if material falls or the masonry moves.

A cautious three-level scale is more useful than a universal numerical threshold.

1. Monitor

Monitoring may be reasonable when:

• Face loss is isolated and shallow.
• The remaining brick appears firm.
• Surrounding joints are intact.
• The wall is dry and not moving.
• No new debris is appearing.
• The location is not above an occupied or regularly used area.

Photograph the defect from the same positions and keep dated notes. Check after significant rain and cold weather. Monitoring means observing a limited, apparently stable condition—not ignoring an active one.

2. Arrange prompt assessment

Seek a qualified assessment when you find:

• Recurring flakes, powder, or larger fragments
• Increasing depth or spread of face loss
• Multiple affected bricks
• Persistent dampness or repeated efflorescence
• Open or deteriorated mortar joints
• Failed patches or replacement bricks deteriorating again
• Deep cracks or cracks that appear to be widening
• Extensive damage in a chimney, parapet, foundation, or load-bearing wall

Prompt assessment does not automatically mean that the wall is unstable. It means there is enough evidence of active deterioration, recurring moisture, or broader failure to justify a site-specific diagnosis before more fabric is lost.

3. Restrict access and seek urgent assessment

Loose masonry above a door, pavement, driveway, entrance, neighboring property, or other occupied area presents a falling-debris hazard even if the wall remains standing. Bulging, bowing, displacement, deep section loss, major or widening cracks, and extensive deterioration in a chimney or load-bearing wall also warrant urgent professional assessment because they may involve more than the surface face (Alpine Intel’s guidance on the potential effects of severe spalling).

Keep people outside the potential fall zone, do not stand beneath loose masonry to test it, and do not attempt to pull down unstable pieces. These are temporary risk controls, not substitutes for an on-site assessment.

Early spalling is not always harmless, and extensive spalling is not automatic proof of structural failure. A few shallow defects on a freestanding garden wall present different consequences from loose units high on a chimney or widespread loss in a load-bearing façade. Location and wall behavior matter as much as appearance.

Repair options: from monitoring to rebuilding

The repair decision should account for six connected factors:

1. The moisture source and whether it can be controlled
2. The depth and spread of deterioration
3. The soundness of the material left behind
4. The wall’s structural and weather-resisting function
5. Compatibility of proposed brick, mortar, patches, and finishes
6. Evidence of cracking, displacement, or other movement

Monitoring can be appropriate for a limited, stable defect when there is no continuing debris, active wetting, or wall movement. It is most useful when accompanied by dated records rather than occasional visual checks from memory.

Composite or surface patching may be considered for selected shallow defects on otherwise sound brick. A patch can improve appearance, reduce local shedding, or provide limited stabilization. It does not restore unsound material, cure a saturated wall, or correct water entering through flashing, joints, coping, or grade.

Published guidance does not offer a universal depth at which patching becomes unacceptable. Delta Masonry describes composite patching as a limited cosmetic measure for isolated, shallow defects rather than a general cure (Delta Masonry & Tuckpointing’s discussion of repair scope).

Brick-supplier guidance is more skeptical, generally favoring replacement once a brick face has broken away and warning that surface repairs may not last. The difference reflects the importance of exposure, remaining-brick soundness, preparation, patch materials, appearance, and the intended purpose of the repair—not a proven universal threshold.

Selective brick replacement is a common response when individual bricks have substantial face loss or their remaining material is compromised. The replacement must do more than fit the opening: it needs to behave compatibly with the wall.

Brick removal on a façade, chimney, load-bearing wall, or area above pedestrians is not suitable for generic step-by-step DIY instruction.

Repointing addresses deteriorated mortar joints. It can help reduce water entry where failed joints are part of the pathway, but it will not correct defective roof runoff, failed flashing, blocked drainage, an inappropriate coating, or raised grade. Sound bricks with deteriorated joints may need repointing; failed bricks surrounded by intact but overly hard mortar present a different problem.

Section rebuilding or wall-level restoration may be more sensible when deterioration is widespread, bricks continue to fail after spot repairs, or the assembly has systemic water-management or compatibility problems. Replacing isolated units indefinitely can become disruptive without resolving why an elevation, parapet, or chimney is failing.

A sound high-level sequence is:

1. Diagnose the likely mechanism and moisture route.
2. Control runoff, leakage, drainage, or another source of wetting.
3. Determine whether the scope is local, sectional, or wall-wide.
4. Select compatible brick, mortar, patch, and finish materials.
5. Complete a representative repair or mock-up where appearance or performance is uncertain.
6. Observe the repaired area through later wet and cold conditions.

A filled recess is not, by itself, evidence of a successful repair. The objective is a wall that can shed water, dry appropriately, accommodate normal movement, and continue performing without concentrating deterioration in adjacent materials.

Match the replacement brick and mortar as a system

A replacement brick can match the old wall perfectly in color and still be incompatible. Dimensions and appearance matter, but so do strength, density, porosity, water absorption, saturation behavior, and resistance to the wall’s exposure conditions.

An excessively strong or dense unit may behave poorly among weaker, more porous bricks. It may absorb and release moisture differently or alter where stress is concentrated. The International Masonry Institute advises matching strength, density, porosity, and water absorption, warning that overly strong and dense replacements can contribute to premature failure in walls made from weaker brick (International Masonry Institute guidance on replacement-brick compatibility).

Mortar must be considered at the same time. Its job is not simply to be as hard as possible. The masonry should be able to accommodate modest movement and manage moisture without forcing deterioration into the brick. If mortar is significantly harder or denser than adjacent soft units, the joints may remain visually intact while brick edges and faces deteriorate.

That principle does not make one mortar type correct for every wall. The appropriate formulation depends on:

• Brick strength and absorption
• Existing and original mortar
• Exposure to rain, frost, and salts
• Joint dimensions and profile
• Wall thickness and construction
• Structural demands
• Construction era
• Repair and preservation goals

Historic masonry deserves particular care. Older or handmade bricks may be softer, more variable, and more absorbent than modern units. Preservation work may need to match not only mortar behavior but also its color, aggregate, texture, joint dimensions, tooling, and finish. Historic-building guidance also warns that incompatible mortar and careless grinder use can damage bricks and permanently enlarge joints (Old House Authority’s historic brick-repair guidance).

Salvaged brick can sometimes offer a visual match, but age alone does not prove physical compatibility.

Historic solid walls and modern veneer or cavity walls also manage moisture differently. A solid masonry wall may absorb rain and later release it through its surfaces and joints. The same spalled face can therefore lead to a different investigation.

Where failure is recurring or widespread, field or laboratory evaluation may be useful. Depending on the building and repair goals, specialists might consider water penetration, absorption, hardness, soundness, density, strength, porosity, saturation behavior, freeze-thaw durability, or salt content.

Not every project needs every test. Testing should answer a defined question—such as why replacements are failing or whether a candidate brick is compatible—rather than become a standard checklist applied without purpose.

Repairs and maintenance choices that can make spalling worse

Well-intentioned work can increase deterioration when it prevents drying, removes the brick surface, or makes one component much harder than its neighbors.

Hard cement-rich mortar: Dense, rigid mortar beside softer brick may impede normal movement and drying. Instead of weathering at the joint, the system can concentrate stress or moisture in brick edges and faces.

Dense cement patches: A hard patch may conceal a recess while leaving unsound material and active moisture behind it.

Paint and low-permeability coatings: Some coatings restrict evaporation and retain moisture in masonry, particularly in older solid walls. Blistering paint, damp interiors, or deterioration concentrated behind a coating should prompt investigation rather than another coat.

Pressure washing and abrasive cleaning: Cleaning should begin with the gentlest effective method and be tested in an inconspicuous but representative area.

Careless grinding: Mechanical removal during repointing can chip brick edges, widen joints, and alter the appearance and behavior of historic work. Tool choice and operator control matter.

Reflexive sealing: A product labeled “breathable” or “vapor-permeable” is not automatically needed, compatible, or beneficial. Even guidance that permits water repellents cautions that they are not appropriate in every case and that film-forming products may trap moisture.

Before applying a repellent, consider where water enters, where it can leave, whether the wall contains salts, what coatings are already present, and whether concealed drainage is working. A treatment applied to the visible face cannot compensate for water entering from a parapet, roof, cavity, chimney crown, or soil.

Paint removal, rendering, and sealing are likewise not universal solutions. Rendering may protect a suitably detailed wall in some circumstances, but it can also conceal continuing dampness or displacement. Paint and coating removal can damage the fireskin if the method is too aggressive. Specialist trials may be warranted before treating a prominent, fragile, or historic elevation.

Prevent recurrence and brief the right professional

Prevention begins with ordinary water management rather than a miracle surface treatment. Maintain chimney caps and crowns, parapet coping, wall-top protection, gutters, downspouts, flashing, and mortar joints. Keep grade and paving from directing water toward the wall. Reduce persistent irrigation, wet soil contact, and dense vegetation against masonry.

Use gentle cleaning and continued observation. Avoid pressure washing simply because the surface looks stained, and do not apply a sealer solely because brick is porous. Porosity is part of how many masonry walls manage moisture; the objective is controlled wetting and effective drying, not necessarily an impermeable surface.

Match the professional to the problem:

• A qualified mason may be appropriate for localized brick replacement or repointing where the cause and scope are reasonably clear.
• A building-envelope specialist can investigate recurring or concealed water entry, especially around roofs, openings, flashing, cavities, and transitions.
• A preservation professional can help protect historic brick, mortar, joint profiles, finishes, and visual character.
• A structural engineer should assess significant movement, bulging, bowing, displacement, major cracking, possible instability, or uncertainty about a load-bearing wall or chimney.

Prepare useful information before requesting quotations:

• Wide and close photographs
• Exact locations and approximate spread
• A history of loose flakes or falling debris
• Wall type, age, and construction if known
• Changes observed after rain, freezing, or thawing
• Interior dampness or staining
• Existing paint, render, patches, or sealers
• Previous repointing and brick replacement
• Visible defects in coping, flashing, gutters, downspouts, or grade

Ask each contractor or consultant:

1. What moisture pathway or deterioration mechanism do you think is active?
2. What evidence supports that diagnosis?
3. What corrective work will address the cause before the faces are repaired?
4. How will the replacement brick and mortar be matched for compatibility?
5. Is testing or a mock-up justified, and what decision will it inform?
6. How will existing paint, patches, render, or sealer be treated?
7. How will access, temporary stability, and falling debris be controlled?
8. What will be monitored after completion to identify recurrence?

Be cautious when a proposal treats only the visible recesses but does not explain the wetting source, wall construction, or material compatibility. A neat patch is not necessarily a successful repair.

Project-specific repair and safety decisions require an on-site assessment. Photographs and general educational guidance can identify questions and warning signs, but they cannot establish concealed construction, material soundness, or structural condition. This article is informational rather than a substitute for project-specific professional advice, consistent with the site’s terms and conditions.

Frequently asked questions

Is brick spalling dangerous?

It can be. A shallow, stable defect on an otherwise dry and unmoving wall may primarily be a maintenance concern. Loose pieces above doors, pavements, driveways, or occupied spaces create a falling-debris hazard, while bulging, displacement, deep deterioration, or major cracking may indicate a broader wall problem.

Restrict access around loose overhead masonry and obtain an urgent professional assessment. Do not stand beneath it, strike it, or attempt to remove unstable pieces without appropriate access and safety controls.

Does efflorescence mean my bricks are about to spall?

No. Efflorescence shows that moisture has transported soluble salts through or across the masonry. It is a reason to investigate wetting and drying, but it neither proves that face loss is occurring nor establishes that it is imminent.

Efflorescence and spalling may occur together because both can involve moisture. One is not, however, a reliable forecast of the other.

Can a spalled brick be patched instead of replaced?

Sometimes. Patching may be considered when the defect is shallow, isolated, stable, and surrounded by sound material. A composite patch should be understood as a limited cosmetic or stabilizing treatment rather than a cure for saturated or structurally compromised brick.

Substantial face loss, continuing debris, or soft material extending into the unit commonly favors selective replacement. There is no universal depth or percentage that decides the issue automatically.

Will a breathable sealer stop brick spalling?

Not necessarily. A vapor-permeable repellent may reduce rain absorption in a suitable wall, but it cannot repair unsound brick or correct defective flashing, roof runoff, open joints, blocked drainage, ground moisture, or water entering from behind.

“Breathable” is a product characteristic, not proof of compatibility. Diagnose the moisture pathway, existing coatings, wall construction, and drying potential before applying any repellent.

Why can hard mortar damage old or soft brick?

Mortar and brick need to work as a system. If the mortar is much harder or denser than softer brick, moisture movement and small dimensional changes may be redirected into the units. The joints can remain intact while brick edges and faces become the vulnerable parts.

The answer is not to prescribe one mortar type universally. The repair mortar should be selected for compatibility with the existing brick, original mortar, exposure, joint design, and wall construction.

Ultimately, brick spalling should be read as evidence rather than covered as an ugly surface. Document the damage, protect people from loose masonry, trace water from the top of the assembly to grade, and correct the cause before selecting a compatible repair. A few stable defects may require only observation, but recurring debris, widespread face loss, persistent dampness, major cracking, or wall movement deserves professional assessment—not another cosmetic patch.
